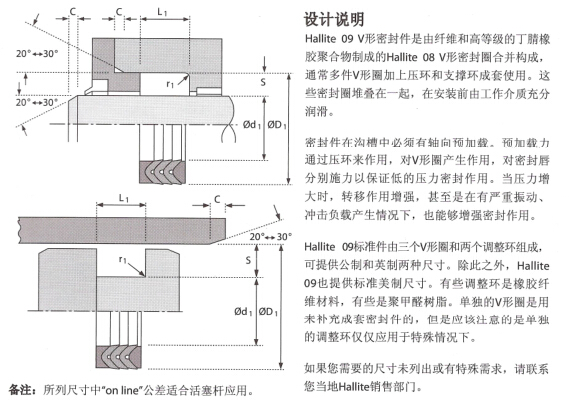

∅d1 |
∅D1 |
L1+0.75-0.0 |
PART NO. |
|
12.00 |
22.00 |
16.00 |
0188730 |
|
15.00 |
25.00 |
16.00 |
0189530 |
|
16.00 |
26.00 |
16.00 |
0190130 |
|
18.00 |
28.00 |
16.00 |
0190530 |
|
20.00 |
30.00 |
16.00 |
0190930 |
|
22.00 |
32.00 |
16.00 |
0191730 |
|
25.00 |
40.00 |
22.50 |
0192630 |
|
28.00 |
43.00 |
22.50 |
0193430 |
|
30.00 |
45.00 |
22.50 |
0193930 |
|
32.00 |
47.00 |
22.50 |
0194330 |
|
35.00 |
50.00 |
22.50 |
0195130 |
|
36.00 |
51.00 |
22.50 |
0196030 |
|
42.00 |
57.00 |
22.50 |
0196830 |
|
45.00 |
60.00 |
22.50 |
0197430 |
|
48.00 |
63.00 |
22.50 |
0197730 |
|
50.00 |
70.00 |
30.00 |
1208430 |
|
55.00 |
75.00 |
30.00 |
1208230 |
|
56.00 |
76.00 |
32.00 |
1208630 |
|
60.00 |
80.00 |
32.00 |
1208930 |
|
63.00 |
83.00 |
32.00 |
1209130 |
|
70.00 |
90.00 |
30.00 |
1209330 |
|
75.00 |
95.00 |
30.00 |
1209530 |
|
80.00 |
100.00 |
30.00 |
120960 |
|
80.00 |
105.00 |
44.00 |
0984230 |
|
85.00 |
105.00 |
30.00 |
1209830 |
|
90.00 |
110.00 |
30.00 |
1210630 |
|
100.00 |
120.00 |
30.00 |
1210730 |
|
105.00 |
125.00 |
30.00 |
1203130 |
|
110.00 |
130.00 |
30.00 |
1195030 |
|
120.00 |
140.00 |
30.00 |
4137830 |
|
125.00 |
150.00 |
34.00 |
1215330 |
|
135.00 |
160.00 |
34.00 |
1197630 |
|
140.00 |
160.00 |
33.00 |
0677130 |
|
150.00 |
180.00 |
45.00 |
1220130 |
|
170.00 |
200.00 |
45.00 |
1224930 | |
|
|
