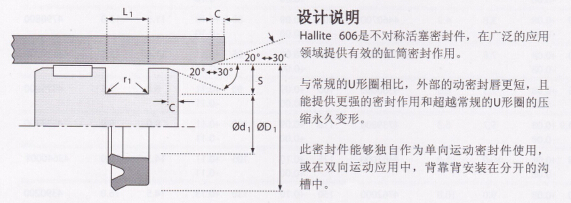

∅D1 |
∅d1 |
SL |
L1+0.25-0 |
PART NO. |
|
25 |
15 |
8.2 |
9.0 |
4390100 |
|
25 |
17 |
5.7 |
6.3 |
4418000# |
|
30 |
20 |
8.0 |
9.0 |
4354200 |
|
32 |
24 |
5.7 |
6.3 |
4351900# |
|
35 |
25 |
7.3 |
8.0 |
4365700 |
|
37 |
21 |
11.8 |
13.0 |
4354100 |
|
38 |
31 |
5.2 |
6.0 |
4728000 |
|
40 |
30 |
7.3 |
8.0 |
4299500# |
|
40 |
30 |
10.0 |
11.0 |
4400900 |
|
45 |
35 |
7.3 |
8.0 |
4315700 |
|
50 |
39 |
3.8 |
4.2 |
4460700 |
|
50 |
40 |
7.8 |
8.0 |
4319500 |
|
55 |
45 |
7.3 |
8.0 |
4380000 |
|
60 |
44.9 |
5.7 |
6.3 |
4739800 |
|
60 |
45 |
10.0 |
11.0 |
4407000 |
|
60 |
50 |
9.0 |
10.0 |
4762000 |
|
63 |
48 |
11.4 |
12.5 |
4383200 |
|
63 |
53 |
7.3 |
8.0 |
4341500# |
|
63 |
53 |
11.8 |
13.0 |
4318800 |
|
65 |
55 |
7.3 |
8.0 |
4424100 |
|
70 |
55 |
10.0 |
11.0 |
4448000 |
|
70 |
60 |
8.1 |
9.0 |
4709500 |
|
71 |
61 |
6.0 |
7.0 |
4492600 |
|
75 |
67 |
8.8 |
9.7 |
4322300 |
|
80 |
65 |
11.4 |
12.5 |
4363800# |
|
80 |
70 |
6.8 |
7.5 |
4370300 |
|
80 |
70 |
8.0 |
9.0 |
4709600 |
|
85 |
75 |
8.1 |
9.0 |
4709700 |
|
85.7 |
70.7 |
10.3 |
11.4 |
4493400 |
|
90.0 |
80.0 |
11.0 |
12.0 |
4798800 |
|
100 |
85 |
11.4 |
12.5 |
4363900# |
|
100 |
90 |
6.8 |
7.5 |
4375900 |
|
110 |
100 |
8.0 |
9.0 |
4533100 |
|
125 |
105 |
14.5 |
16.0 |
4364000 |
|
150 |
130 |
14.5 |
16.0 |
4390200 |
|
150 |
140 |
13.6 |
15.0 |
4390300 |
|
160 |
140 |
18.2 |
20.0 |
4364100 |
|
200 |
180 |
14.5 |
16.0 |
4392300 | |
|
|
