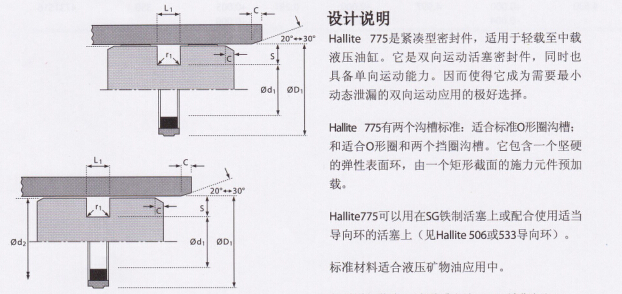

∅D1 |
∅d1 |
∅d2 |
L1 |
O RING |
PART NO. |
|
1.500 |
1.258 |
1.497 |
0.187 |
218 |
4731816 |
|
1.750 |
1.508 |
1.747 |
0.187 |
222 |
4750716 |
|
2.000 |
1.630 |
1.997 |
0.281 |
326 |
4731016 |
|
2.500 |
2.130 |
2.497 |
0.281 |
330 |
4731116 |
|
3.000 |
2.630 |
2.997 |
0.281 |
334 |
4731216 |
|
3.500 |
3.130 |
3.497 |
0.281 |
338 |
4731316 |
|
4.000 |
3.630 |
3.997 |
0.281 |
342 |
4731416 |
|
5.000 |
4.630 |
4.997 |
0.281 |
350 |
4731516 |
|
∅D1 |
∅d1 |
∅d2 |
L1 |
O RING |
PART NO. |
|
1.500 |
1.258 |
1.497 |
0.275 |
218 |
4730516 |
|
2.000 |
1.630 |
1.997 |
0.410 |
326 |
4733716 |
|
2.500 |
2.130 |
2.497 |
0.410 |
330 |
4726916 |
|
3.000 |
2.630 |
2.997 |
0.410 |
334 |
4733816 |
|
3.500 |
3.130 |
3.497 |
0.410 |
338 |
4733916 |
|
4.000 |
3.630 |
3.997 |
0.410 |
342 |
4734016 |
|
5.000 |
4.528 |
4.997 |
0.538 |
425 |
4730616 |
|
6.000 |
5.528 |
5.997 |
0.538 |
433 |
4734116 |
|
|
|
