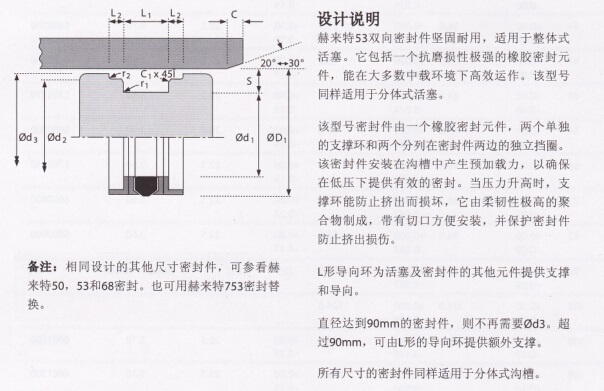

∅D1 |
∅d1 |
∅d2 |
∅d3 |
L1+0.2-0 |
L2 +0.1-0 |
PART NO. |
|
32 |
22 |
28.0 |
31.0 |
15.5 |
2.60 |
6600100 |
|
40 |
26 |
36.0 |
39.0 |
15.5 |
2.60 |
6600200 |
|
50 |
34 |
46.0 |
49.0 |
20.5 |
3.10 |
6600300 |
|
55 |
39 |
51.0 |
54.0 |
20.5 |
3.10 |
6600400 |
|
60 |
44 |
56.0 |
59.0 |
20.5 |
3.10 |
6600500 |
|
63 |
47 |
59.0 |
62.0 |
20.5 |
3.10 |
6600600 |
|
65 |
49 |
61.0 |
64.0 |
20.5 |
3.10 |
1705210 |
|
70 |
54 |
66.0 |
69.0 |
20.5 |
3.10 |
6600700 |
|
80 |
62 |
76.0 |
79.0 |
22.5 |
3.60 |
1705110 |
|
90 |
72 |
86.0 |
89.0 |
22.5 |
3.60 |
6600800 |
|
100 |
82 |
96.0 |
99.0 |
22.5 |
3.60 |
6600900 |
|
110 |
92 |
106.0 |
109.0 |
22.5 |
3.60 |
6601000 |
|
125 |
103 |
121.0 |
124.0 |
26.5 |
5.10 |
6601100 |
|
140 |
118 |
136.0 |
139.0 |
26.5 |
5.10 |
6601200 |
|
160 |
138 |
156.0 |
159.0 |
26.5 |
5.10 |
6601300 |
|
250 |
225 |
246.0 |
249.0 |
31.5 |
6.60 |
6601400 | |
|
|
