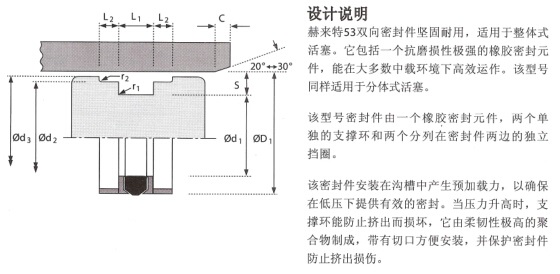

∅D1 |
∅d1 |
∅d2 |
∅d3 |
L1+0.016+0.005+0.004-0 |
PART NO. |
|
2.000 |
1.375 |
1.821 |
1.950 |
0.75 |
0.250 |
6593410 |
|
2.250 |
1.625 |
2.071 |
2.200 |
0.75 |
0.250 |
6593510 |
|
2.500 |
1.875 |
2.321 |
2.450 |
0.75 |
0.250 |
6593610 |
|
2.750 |
2.000 |
2.524 |
2.690 |
0.937 |
0.250 |
6593710 |
|
3.000 |
2.250 |
2.774 |
2.940 |
0.937 |
0.250 |
1377612 |
|
3.250 |
2.500 |
3.023 |
3.190 |
0.937 |
0.250 |
6593910 |
|
3.500 |
2.750 |
3.274 |
3.440 |
0.937 |
0.250 |
0082412 |
|
3.750 |
3.000 |
3.524 |
3.690 |
0.937 |
0.250 |
2361010 |
|
4.000 |
3.250 |
3.773 |
3.940 |
0.937 |
0.250 |
0082313 |
|
4.250 |
3.500 |
4.024 |
4.187 |
0.937 |
0.250 |
0082211 |
|
4.500 |
3.500 |
4.232 |
4.428 |
1.250 |
0.250 |
6594210 |
|
4.750 |
3.750 |
4.463 |
4.660 |
1.250 |
0.375 |
2360910 |
|
5.000 |
4.000 |
4.712 |
4.910 |
1.250 |
0.375 |
6594310 |
|
5.500 |
4.500 |
5.213 |
5.410 |
1.250 |
0.375 |
6594410 |
|
6.000 |
5.000 |
5.713 |
5.910 |
1.250 |
0.375 |
6594510 | |
|
|
