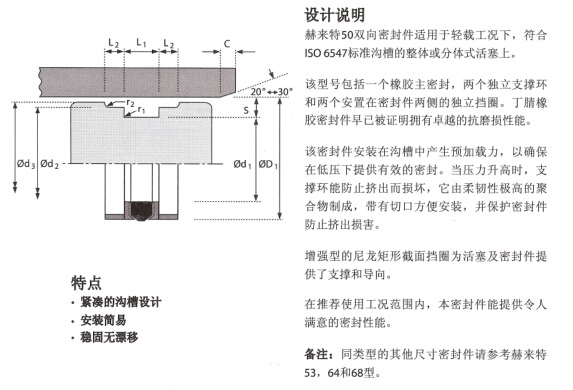

∅D1 |
∅d1 |
∅d2 |
∅d3 |
L1+0.35+0.1 |
L2+0.1-0 |
PART NO. |
|
25 |
17 |
22.0 |
24.0 |
10.0 |
4.0 |
6607810# |
|
32 |
24 |
29.0 |
31.0 |
10.0 |
4.0 |
6607910# |
|
40 |
32 |
37.0 |
39.0 |
10.0 |
4.0 |
6608010# |
|
50 |
40 |
47.0 |
49.0 |
12.5 |
4.0 |
6608110# |
|
63 |
53 |
60.0 |
62.0 |
12.5 |
4.0 |
2199513# |
|
80 |
65 |
76.0 |
78.5 |
20.0 |
5.0 |
6608210# |
|
100 |
85 |
96.0 |
98.5 |
20.0 |
5.0 |
6608310# |
|
125 |
105 |
120.0 |
123.0 |
25.0 |
6.3 |
6608410# |
|
140 |
120 |
135.0 |
138.0 |
25.0 |
6.3 |
2317030 |
|
160 |
140 |
155.0 |
158.0 |
25.0 |
6.3 |
6608510# | |
|
|
