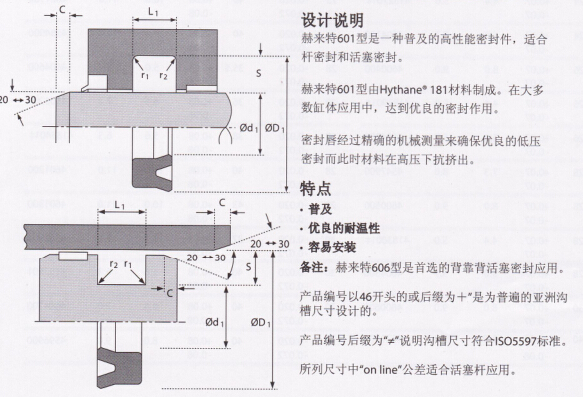

∅d1 |
∅D1 |
SL |
L1+0.010-0 |
PART NO. |
|
0.500 |
0.750 |
0.250 |
0.275 |
4566500 |
|
0.500 |
0.875 |
0.197 |
0.218 |
4300000 |
|
0.500 |
1.000 |
0.250 |
0.275 |
4110201 |
|
0.625 |
1.000 |
0.190 |
0.218 |
4298300 |
|
0.625 |
1.125 |
0.250 |
0.275 |
4509101 |
|
0.750 |
1.250 |
0.250 |
0.275 |
4102901 |
|
0.875 |
1.375 |
0.250 |
0.275 |
4507101 |
|
1.000 |
1.500 |
0.250 |
0.275 |
4111101 |
|
1.250 |
1.750 |
0.250 |
0.275 |
4502701 |
|
1.250 |
1.750 |
0.375 |
0.413 |
4107001 |
|
1.375 |
1.750 |
0.375 |
0.413 |
4353400 |
|
1.375 |
2.000 |
0.266 |
0.312 |
4236201 |
|
1.500 |
2.000 |
0.250 |
0.275 |
4111001 |
|
1.750 |
2.250 |
0.250 |
0.275 |
4502601 |
|
1.750 |
2.250 |
0.375 |
0.413 |
4140901 |
|
1.750 |
2.375 |
0.266 |
0.312 |
4236301 |
|
1.750 |
2.375 |
0.562 |
0.619 |
4250901 |
|
2.000 |
2.375 |
0.250 |
0.275 |
4508301 |
|
2.000 |
2.375 |
0.312 |
0.344 |
4509201 |
|
2.000 |
2.500 |
0.375 |
0.413 |
4353500 |
|
2.000 |
2.625 |
0.500 |
0.550 |
4225101 |
|
2.000 |
2.625 |
0.562 |
0.619 |
4159801 |
|
2.125 |
2.500 |
0.250 |
0.275 |
4508201 |
|
2.125 |
2.625 |
0.375 |
0.413 |
4156101 |
|
2.250 |
2.750 |
0.375 |
0.413 |
4128701 |
|
2.375 |
3.000 |
0.312 |
0.344 |
4107201 |
|
2.500 |
3.000 |
0.375 |
0.413 |
4119501 |
|
2.500 |
3.125 |
0.312 |
0.344 |
4124401 |
|
2.625 |
3.125 |
0.375 |
0.413 |
4224701 |
|
2.750 |
3.375 |
0.562 |
0.619 |
4250701 |
|
2.875 |
3.500 |
0.325 |
0.360 |
4129701 |
|
3.000 |
3.625 |
0.562 |
0.619 |
4160001 |
|
3.750 |
4.500 |
0.375 |
0.413 |
4119201 |
|
4.000 |
4.500 |
0.511 |
0.562 |
4373400 |
|
4.000 |
4.750 |
0.375 |
0.413 |
4120501 |
|
4.000 |
4.750 |
0.536 |
0.600 |
4422500 |
|
4.500 |
5.000 |
0.375 |
0.413 |
4129801 |
|
4.750 |
5.500 |
0.360 |
0.437 |
4154701 |
|
5.000 |
5.750 |
0.482 |
0.539 |
4224801 |
|
5.000 |
6.000 |
0.750 |
0.825 |
8901300 |
|
5.500 |
6.250 |
0.375 |
0.413 |
4119301 |
|
5.750 |
6.500 |
0.375 |
0.413 |
4135301 | |
|
|
